Fill the nebulizer cup with medication (max capacity 5 ml), attach the air tube, and power the unit. Adjust the valve for desired nebulization rate (0.15–0.40 ml/min). Use with mouthpiece or mask. After use, unplug the unit, let it cool, rinse components (dishwasher-safe), wipe the compressor, and reassemble.

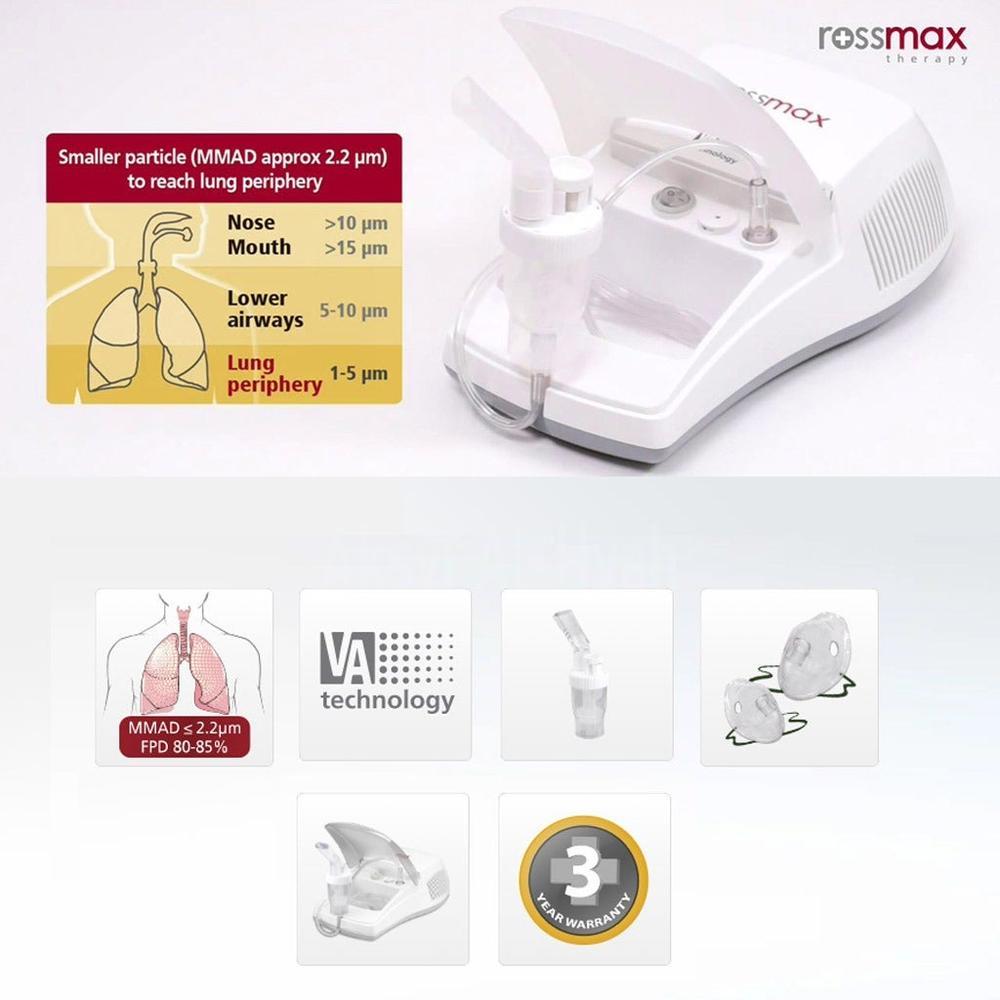

Particle size (MMAD): ≤ 2.2 µm - Fine Particle Dose (FPD): 80–85% - Nebulization Rate: 0.15–0.40 ml/min - Power: AC 110-230 V, ≤ 130 W - Noise Level: ≤ 55 dBA (1 m) - Operating Flow: ≥ 4.0 lpm - Size: 280 × 190 × 100 mm - Weight: ~1.75 kg (without accessories) - Operating Temp: 10–40 °C; Storage Temp: –20–60 °C - Med Cup Capacity: 5 ml
Use only NA100-specific air filters—replace when gray (approximately every 2 months). Do not use without an air filter. Keep the unit dry, avoid immersion, and don’t operate when wet. Use only for intended medical purpose under physician supervision. Close adult supervision required for children. Do not tilt the unit, or use in presence of oxygen or flammable anesthetics.
Customizable mist rate for various patient needs (adults vs children) • Efficient fine mist (≤ 2.2 µm) ensures deep lung delivery • VAT reduces medication waste • Quiet (≤ 55 dBA) piston compressor • Comprehensive kit with masks and storage convenience
Delivers consistent fine particle size for high-efficiency treatment. Includes mouthpiece and masks, plus built-in storage for accessories.

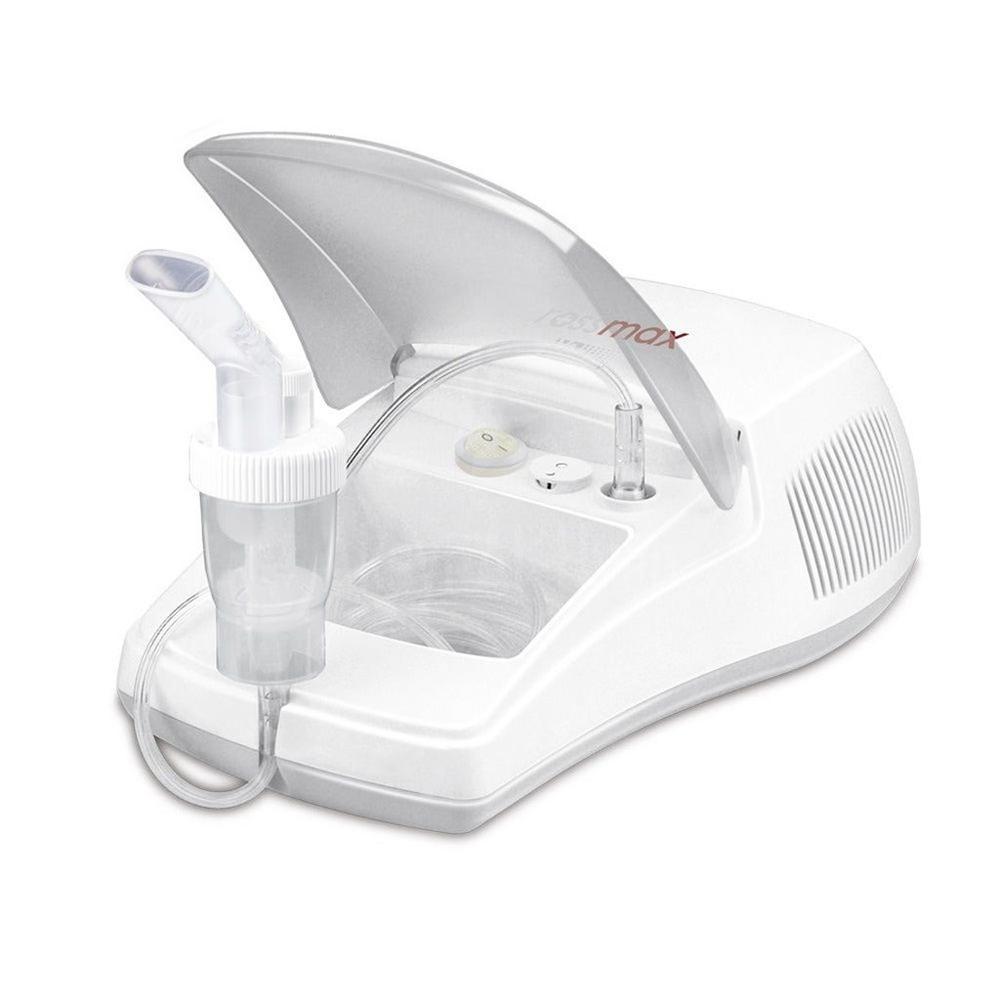

Core components include: piston compressor, VAT (Valve Adjustable Technology) nebulizer bottle, air tube, mouthpiece, masks (adult and child), air filters, and accessory compartment.
